Samoa Square Flexible Fabric Bellow Cover

Samoa Square Flexible Fabric Bellow Cover

    • Flexibility Coated Fabric Bellows
    • Flexble Spiral Spring Steel Telescopic Cover Price
    • Armor Bellow Cover Armoured Guard Shield Protective Bellow Cover
    • Rod Protective Shield Telescopic Sprial Steel Cover
  • Samoa Square Flexible Fabric Bellow Cover

    Product Details:

    Place of Origin: China
    Brand Name: Sheng Hao
    Certification: CE FDA
    Country: Samoa

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD / set
    Packaging Details: packed in wooden box or carton
    Delivery Time: 14 work days after payment
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 800 sets per month
    All Products
    Detailed Product Description
    Warranty: 136 Months Delivery: After 10 Working Days After Payment
    Stand-by Working: Continuously For 18 Hours Speed(W): 8m/s

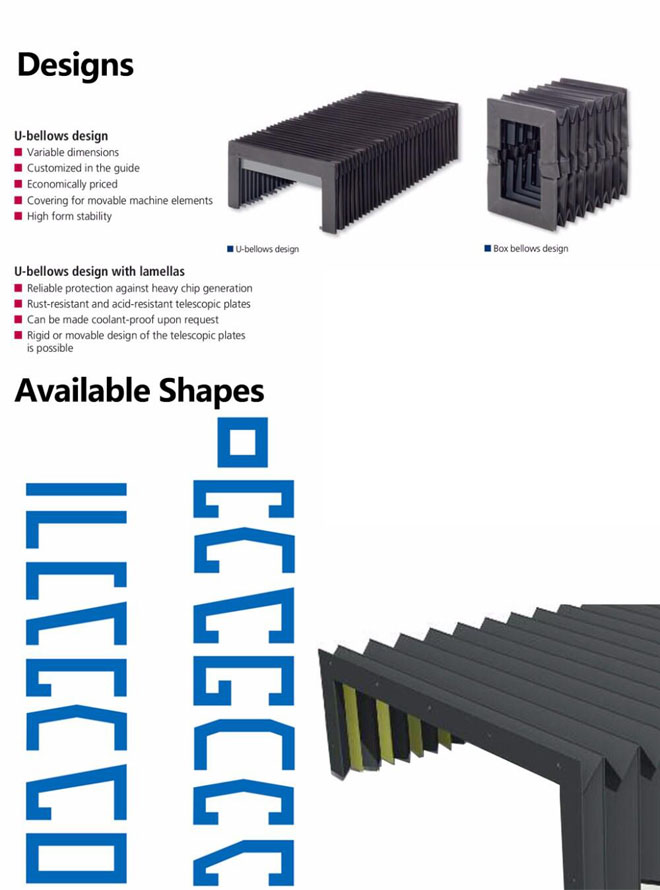

    Square Flexible Bellow Cover Options:
    internal metal support structure in the roof and/or sides
    nylon supporting rollers

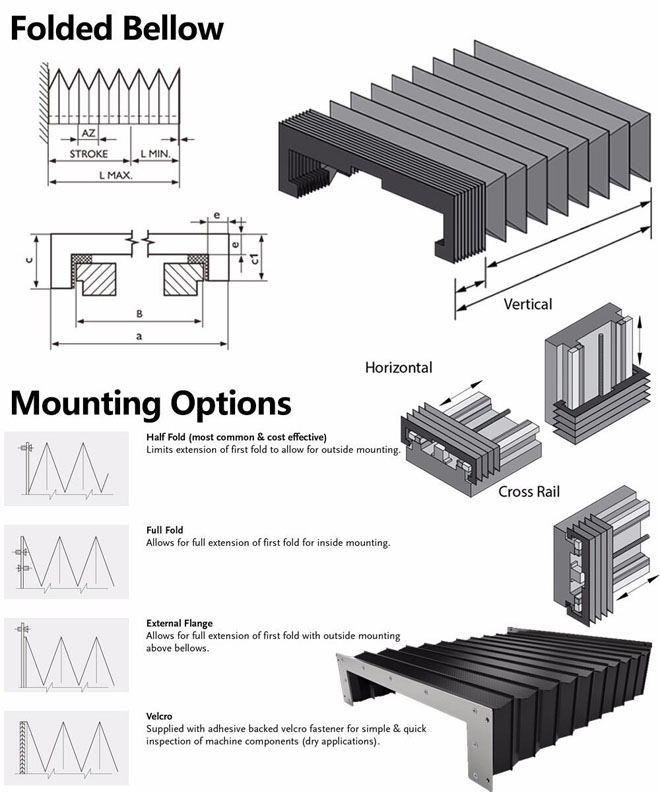

    flanged connection(s) with a whole or half pleat
    protective flanges
    velcro
    Materials
    Black, resin treated poly-amide with PVC strengthening. Glued. For protection against dry dirt at applications of -22 Fahrenheit tot 194 Fahrenheit (-30 Celsius tot 90 Celsius
    External fabric of PVC coated poly-amide, glued with PU adhesive and resistant against a.o. water, oils and coolants. -22 Fahrenheit to 212 Fahrenheit (30 Celsius tot 100 Celsius )
    Same external of PVC coated poly-amide, glued with PU for above mentioned resistance and an internal lining for a higher mechanical utility and/or speeds up to 394 feet/minute (120 meter).
    External cover of PU coated poly-amide for improved temperature achievements between -40 Fahrenheit to 266 Fahrenheit (-40 Celsius en 130 Celsius ).
    Rubber coated poly-amide with PVC strengthening and PU adhesive for applications up to max. 285 Fahrenheit (max. 140 Celsius ). Excellent solvents resistance.
    Aluminum coated Kevlar fabric for temperatures to max. 750 Fahrenheit (max. 400 Celsius ). Oil and solvents resistant and self-extinguishable.

    Square Flexible Fabric Bellow Cover Pictures:

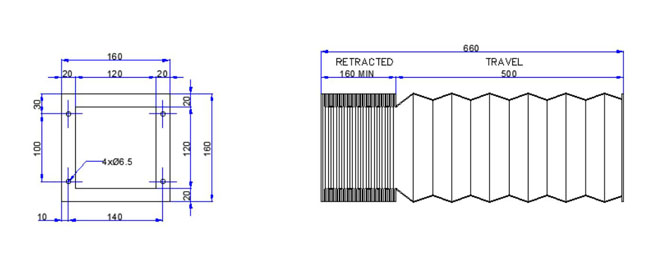

    Square Flexible Fabric Bellow Cover Drawing:




    Accordion Flexible  Bellow Cover For Glass Machineare characterized by a long service life and high tensile strength. This style of bellow is especially designed for normal temperatures and aggressive operating conditions. They perform reliably to protect your equipment. In addition to contact and radiant heat resistance, the key benefits of bellows: high strength, extreme durability, and a material selection for chemical, UV and ozone resistance. When requesting a quote, please specify environmental conditions and continuous temperature range as well as minimum/maximum temperature.

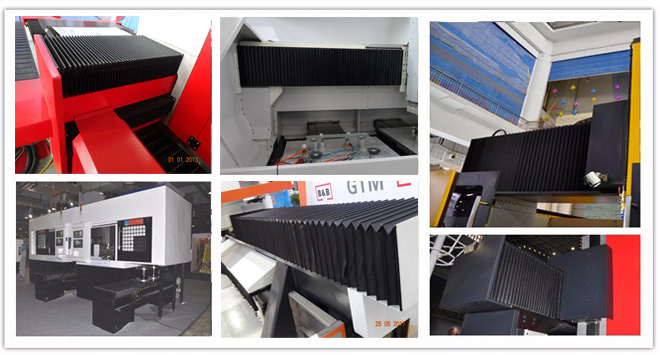

    Square Flexible Fabric Bellow Cover Application:
